Product Overview

The Wrong Way Alerting solution is an all-in-one system that provides reliable wrong way detection on ramps.

The Wrong Way Alerting solution is an all-in-one system that provides reliable wrong way detection on ramps. This module is a side-fire sensor that can detect vehicles traveling the wrong way on ramps.

The wrong way module detects wrong way vehicles and sends an automated message alert with an image snapshot via E-mail or short message service (SMS). The system also provides a 30 second video of the event, allowing traffic operators to visually confirm the wrong way vehicle and provide emergency officials the details of the vehicle.

Drivers wrongfully entering the highway from an off-ramp pose a serious safety risk and can result in injury or fatalities. The detection of these wrong way drivers is vital to reducing these risks. This module provides accurate detection and fast notification to help improve the safety performance of roadways.

Features and Highlights

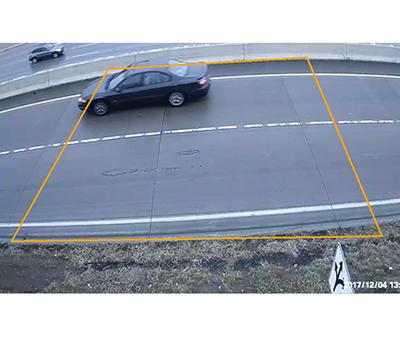

  • Provides single zone wrong way detection using one camera on a ramp
  • Automated message alerts with snapshot via E-mail and SMS
  • Simple to setup and configure
  • Pre and post video event capture and storage of incident
  • Excellent image quality even in low light conditions
  • High Definition video streaming of incident
  • Detection of an event signals the contact closure to activate signs and/or flashing lights​

Technical Specifications

  • Operates on 5 VDC @ 1.5 W max standard
  • Power supply operates on 110 - 240 VAC
  • -40 C to +74 C (-40 F to +165 F)
Dimensions and Weight:
  • H x W x L
  • 114 mm x 76 mm x 29 mm
  • (4.5 in x 3 in x 1.125 in)
  • 0.23 kg (0.5 lb)
  • FCC
  • NEMA TS2-2003
  • CE EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3
  • ICES 003

Due to our continuous efforts to develop products that are most responsive to our customers needs, specifications are subject to change. For complete list of specifications, please download the data sheet.


Additional Information:



User Guide
