Product Overview

Dual channel machine vision processor designed to meet intersection detection objectives.

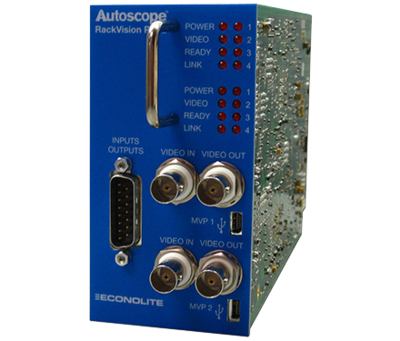

The Autoscope RackVision™ Pro 2 MVP is a dual-channel machine vision processor designed to meet intersection detection objectives of vehicle detection and signal actuation in a typical traffic cabinet. This cost-effective detection solution utilizes the same algorithms that have established Autoscope video detection as the global leader for wide-area video vehicle detection.

The RVP2 MVP fits into a detector rack or shelf mount unit. Quality sources of video signal include the Autoscope Image Sensor (AIS) or existing CCTV cameras that meet minimum performance standards. Multi-threaded software processes video images in real-time to detect traffic. Addressing the needs of video intersection detection and signal actuation, RVP2 is a cost-effective traffic machine vision processor solution. Leveraging the same algorithms as other Autoscope products, RVP2 processes video images into real-time to detect traffic and provide local traffic actuation. RVP2 supports AIS-V, as well as existing CCTV cameras to address varying traffic detection objectives and scenarios.

Features and Highlights

  • Provides basic video vehicle detection for intersection stop line and advance extension applications
  • Processes input from two (2) video cameras per RVP2 unit
  • Installs in a standard detector rack or self-contained shelf-mount unit
  • LED indicates status for communications and valid video sync
  • IP-addressable into Autoscope network
  • Outputs via either card-edge connector or front -panel DB15 connector
  • Password protection
  • Electrical and optical failsafe detector outputs
  • High-energy transient protection
  • Self-test on power-up
  • Software installation by USB flash drive

Technical Specifications

Power

12 to 24 VDC, 11W maximum

Environmental:
  • -34° C to +74° C (-29° F to +165° F)
  • 0 to 95% relative humidity (non-condensing)
Dimensions and Weight:
  • H x W x L
  • 114 mm x 57 mm x 178 mm
  • (4.5 in x 2.3 in x 7 in)
  • 0.2 kg (0.5 lb)
Regulatory
  • NEMA TS2 2003 Standard
  • FCC Part 15, Subpart B, Class A
