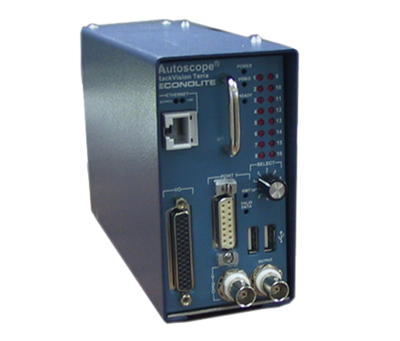

Autoscope RackVision Terra US
Product Overview
Detector rack card provides a cost-effective solution. A powerful combination of dual-core processing power, web browser communications, streaming digital video and ease of setup and use.
With innovative Terra Technology you’ll appreciate the dual-core processing power, web browser communications, streaming digital video and ease of setup and use. Ethernet connectivity provides simple connection to your traffic system communications network. Each detector card slides into standard rack systems and easily integrates with existing Autoscope communications networks and traffic management networks.
With an array of capabilities, the Autoscope® RackVision™ Terra™ detector card is a cost-effective and versatile solution for your transportation projects.
Features and Highlights
- Vehicle detection, traffic data measurement and incident detection
- Single (1) camera video processor channel (PAL, CCIR, NTSC or RS170)
- Dual-core processor for advanced image processing
- MPEG-4 digital streaming video output
- Ethernet communications, IP addressable
- View video from remote locations using Internet browser
- Configuration Wizard® for highways
- Backplane provides convenient terminations
- Fail-safe outputs
Technical Specifications
Power
- 12 to 24 VDC, 11W maximum Consumption, current
- @12VDC: 6W, 500mA
- @24VDC: 7W, 290mA
Environmental:
- -34° C to +74° C (-29° F to +165° F)
- 0 to 95% relative humidity
Dimensions and Weight:
- H x W x L
- 114 mm x 57 mm x 178 mm
- (4.5 in x 2.25 in x 7 in)
- 0.2 kg (0.5 lb)
Regulatory
- NEMA TS2 compliant
- CE EN 55011, CE EN 60950
- FCC art 15, Class A
