RTMS Echo Firmware v2.3 Release Notes

Overview

We have added some new features to simplify the installation of RTMS Echo further and also resolved several issues reported from the field. This also completes the final phase of the planned RTMS Echo hardware revisions. As a reminder, these hardware revisions do not impact the functionality of Echo, but rather, were designed to ensure ISS could continuously deliver high-quality products to our customers throughout the volatile supply chain conditions experienced over the last several years.

Usability Enhancements

We implemented some usability enhancements to help with setup and ease of use.

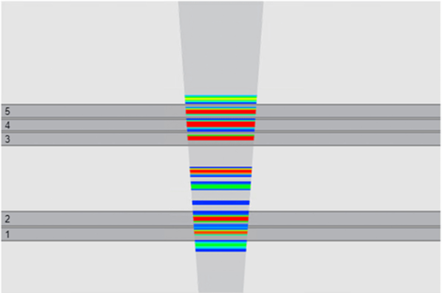

Heatmap auto-populates on the Zones page.

We’ve added the heatmap to the Zones page, so when you navigate to the Zones page for an already configured Echo, the roadway traffic heatmap will automatically populate. This allows you to confirm that your zones are positioned appropriately in relation to the location of where vehicles are being detected on the roadway.

Previously, the heatmap feature was only visible during the automatic zone-finding routine.

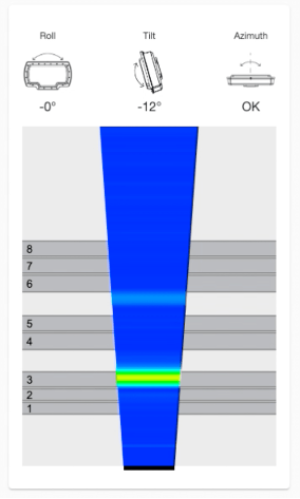

Configured zones now appear on the Aim page.

We’ve added the configured zones to the Aim page. This lets you quickly visualize live radar energy reflections and relate them to a zone. This tool is most useful for experienced users. It allows them to optimize their configuration by looking both at the energy reflected from vehicles and background energy from barriers or other existing infrastructure.

Bug Fixes

  • We fixed an issue that caused the contact closure output(s) to remain in an active state under certain roadway traffic conditions.
  • We fixed an issue with the Wavetronix Z1 Communications Protocol support of the Sensor Time Message.
  • We fixed an issue causing Echo to become unresponsive if invalid network settings were configured.

Update on RTMS Echo Hardware Revisions

The last phase of the planned hardware revisions of RTMS Echo has been completed. Newer Echo hardware revisions will be supported by a minimum version of software, as summarized in the table below:

Echo Hardware Revision First Ship Date Supported Firmware Versions
M2 February 2020 V1.0+
M4 June 2022 V2.1+
M5 Q1 2024 (estimated) V2.3+

How Do I Check My Hardware Revision?

1. Log into the Echo web app using your Internet browser of choice.

2. Navigate to the Settings page.

3. The hardware revision will be listed as shown:
