Autoscope performance is robust and reliable

Product Overview

Autoscope Vision® is taking video detection to new heights by offering a highly accurate, easy to use multi-tasking solution. The integrated camera-processor sensor provides high performance stop bar vehicle detection, bicycle detection and differentiation, advance vehicle detection, traffic data collection, and High-Definition video surveillance.

Building on more than two decades of proven above-ground video detection experience, Autoscope Vision delivers the highest levels of innovation and performance in an easy-to-use detection solution that supports a variety of traffic management and ITS applications. The performance of Vision is robust and reliable, and is based on a new hardware platform designed to enable future ITS capabilities and solutions.

Vision is complimented by a sophisticated Autoscope Comm Manager, a versatile communication hub with a small in-cabinet footprint that optimizes space efficiency. The Comm Manager supports local WiFi communications and streaming video to mobile devices.

  • Vehicle detection, traffic data measurement and incident detection

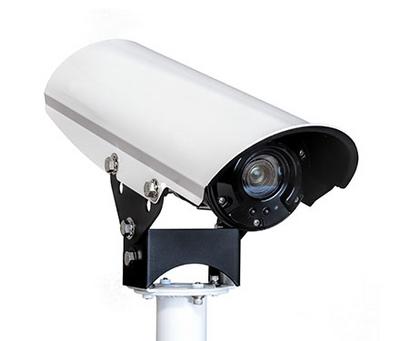

  • Integrated high-definition colour camera, remote controllable zoom lens, and machine vision processor in one compact unit ensures high quality video for processing
  • Digital streaming video output
  • Built-in local WiFi for quick and simple setup
  • Program an entire intersection in just minutes
  • Cost-effective 3-wire cable enables easy pulling through conduit
  • Phase colour input support for delay on red and extend on green, on a zone-by-zone basis
  • Traffic data collection includes per-vehicle speed, length, turning movements and wrong way detection

Power

  • 16W typical, 18W maximum
  • 89 to 265 VAC, 60/50 Hz

Environmental

  • -34° C to +74° C (-29° F to +165° F)
  • Meets TS-2 standards
  • Relative humidity of 0 to 95%, non-condensing

Dimensions and Weight

  • H x W x L (with sunshield and bracket)
  • 178 mm x 140 mm x 572 mm
  • (7 in x 5.5 in x 22.5 in)
  • 2.95 kg (6.5 lb)
